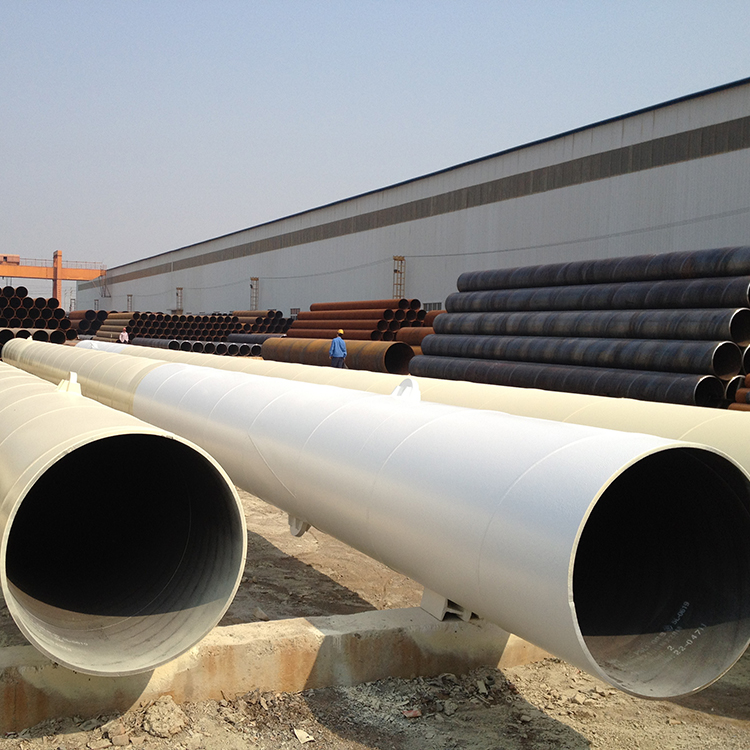

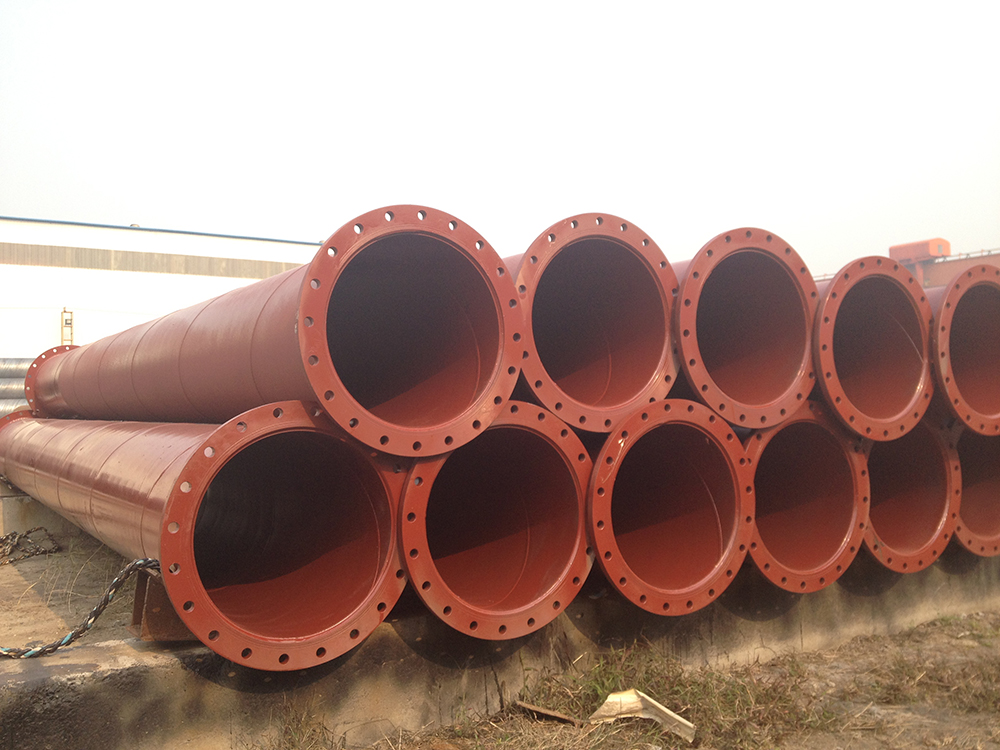

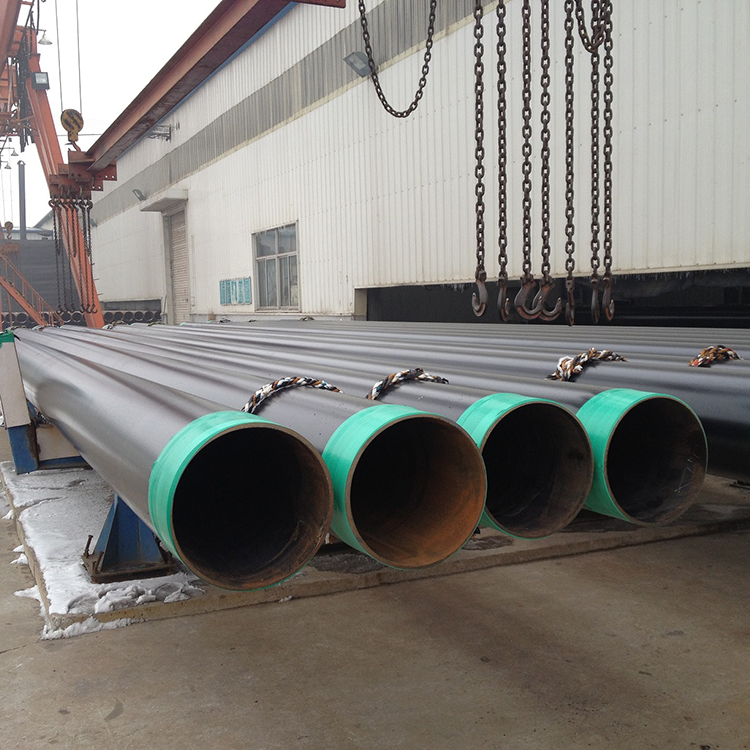

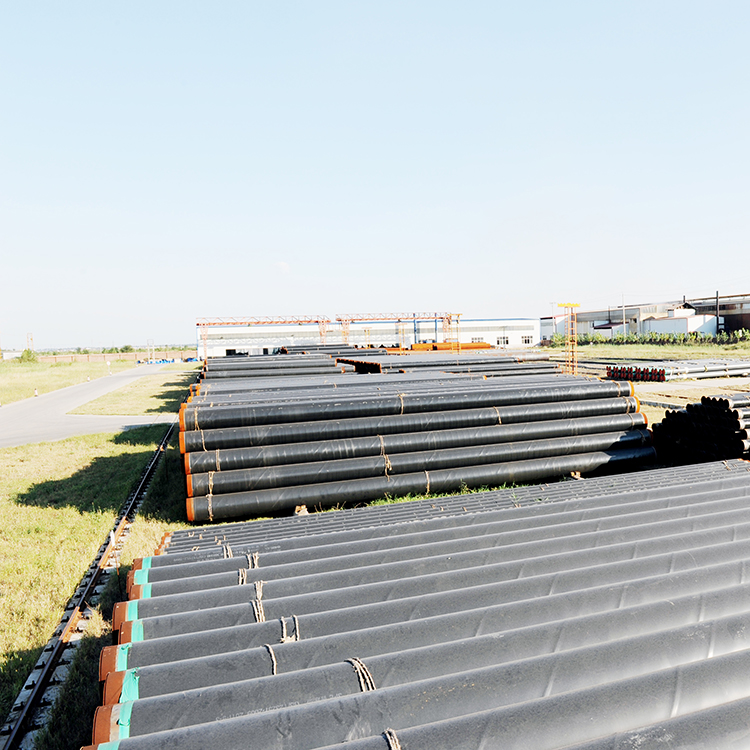

Spiral Steel Pipes for Structural Use

Product:

Description:

Spiral steel pipe is mainly spiral submerged arc welded pipe (SSAW), which is frequently used in the construction of various oil and gas pipelines. The main production process is submerged arc welding. The spiral welded pipe can produce welded pipes with different pipe diameters with the same width of blanks, and it can also produce welded pipes with larger diameters with narrow blanks. Different from the straight seam pipe (ERW steel pipes), the spiral steel pipes can have big diameter max. to 3500mm and can reach length by 30meters or more.

Technical Data:

1, Sizes: 8” to 120”, OD219-3048mm

2, Thickness: 5mm to 25.4mm

3, Length: 6-28meters

4, Welded type: DSAW

5, Standard: API 5L PSL1/PSL2, ISO3183, API 5CT, EN10219, EN10217, BS1387, DIN2458, ASTM A252, KS F4602, KS D3583, ASTM A139 etc.

6, Test: UT, RT, Hydrostatic test etc.

7, Surface treatment: bare pipes, black painted, anti-rust oil, anti-corrosion coating for FBE/3PE/3PP etc.

8, Pipe ends: plain ends, beveled ends,

9, Certificate: EN10204 3.1/3.2

10, TPI Inspection: SGS/BV

11, Origin: Tianjin, China

12, Packing: by loosed pcs

13, Shipment: by 40FT container/bulk vessel
